Specifications:
- Type:
- СІП-1
- Rated voltage, kV:
- 0.6 / 1
- Number and nominal cross-section of phase conductors, mm²:
- 3×16
- Nominal cross-section of the neutral messenger conductor, mm²:
- 25
- Phase insulation thickness, mm:
- 1.3
- Operating temperature range, °C:
- -60… +50
- Minimum permissible installation temperature, °C:
- -20
- Minimum bending radius when laying, mm:
- 206
- Calculated cable outer diameter (reference), mm:
- 20.6
- Weight (approx.), kg/km:
- 270

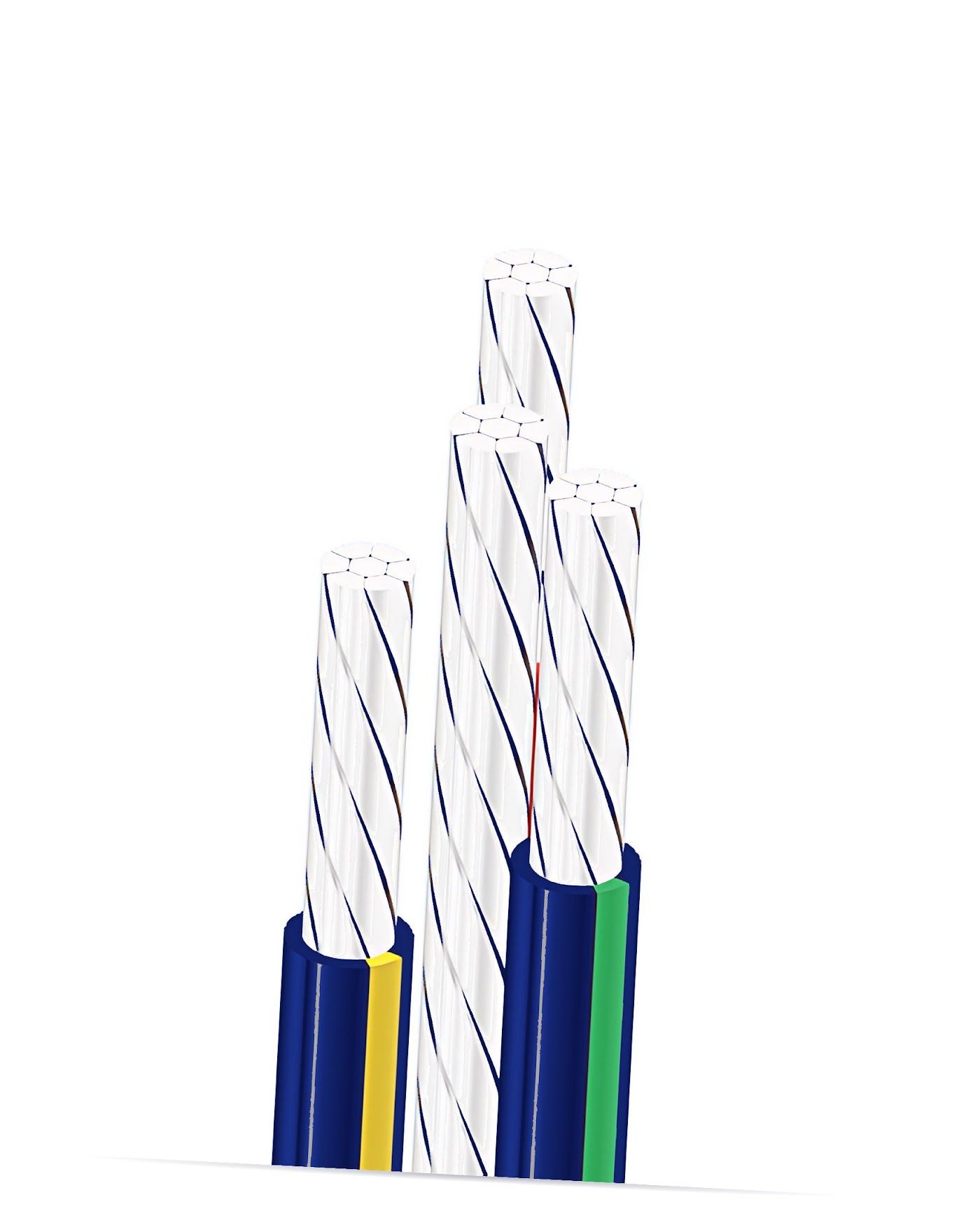

СІП-1 3×16+1×25
Self-supporting wires with light-stabilised XLPE insulation, with a bare neutral conductor.
- Ukrainian marking:
- СІП-1 3×16+1×25
- European marking:
- не зазначено
СІП-1 3×16+1×25
Description
Self-supporting wires with light-stabilised XLPE insulation, with a bare neutral conductor.
Specifications
- Type
- СІП-1
- Rated voltage
- 0.6 / 1 kV
- Number and nominal cross-section of phase conductors
- 3×16 mm²
- Nominal cross-section of the neutral messenger conductor
- 25 mm²
- Phase insulation thickness
- 1.3 mm
- Operating temperature range
- -60… +50 °C
- Minimum permissible installation temperature
- -20 °C
- Minimum bending radius when laying
- 206 mm
- Calculated cable outer diameter (reference)
- 20.6 mm
- Weight (approx.)
- 270 kg/km
Ukrainian marking
СІП-1 3×16+1×25
European marking
не зазначено
